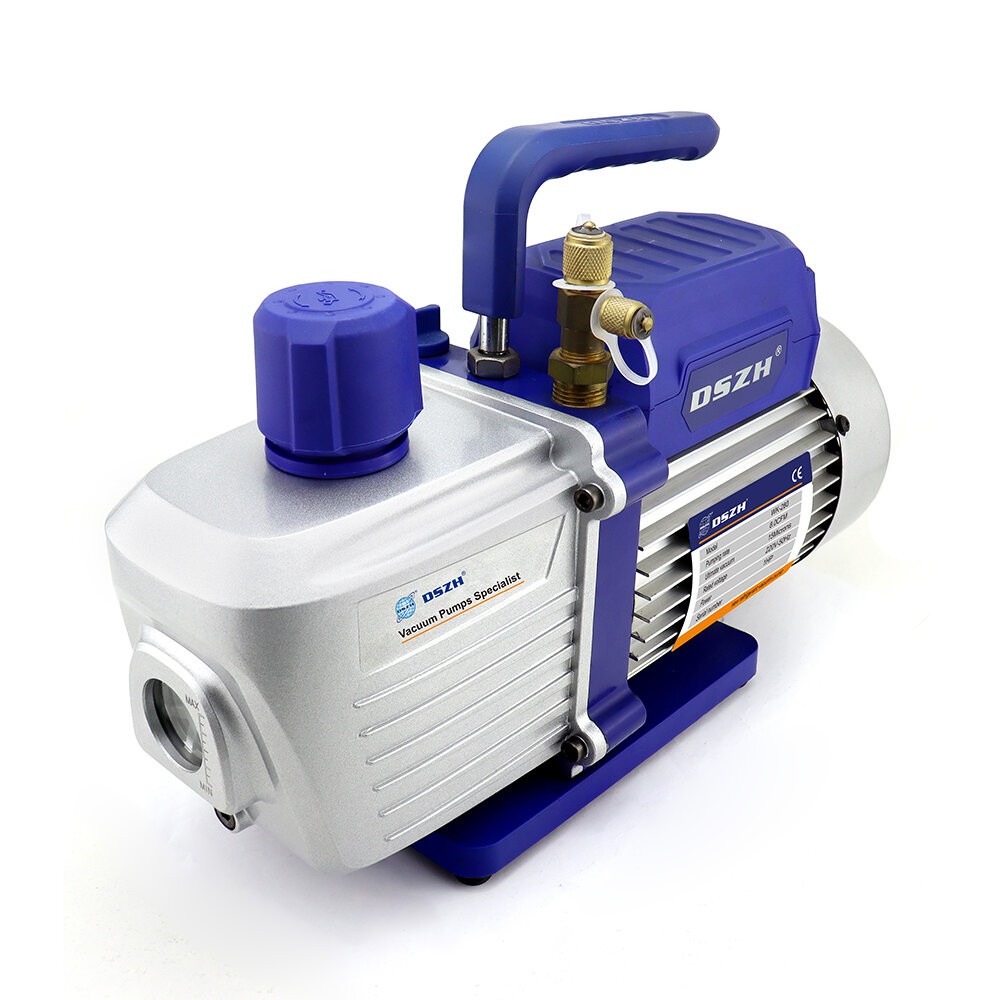

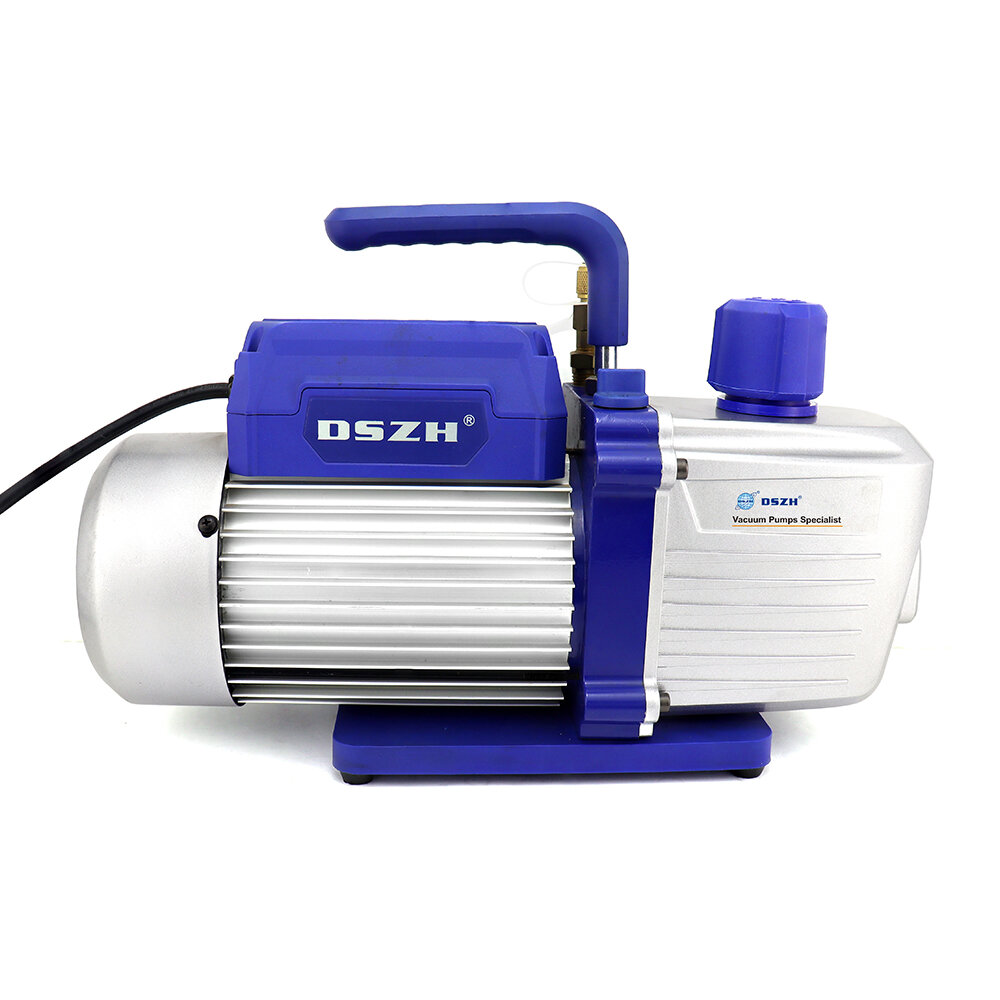

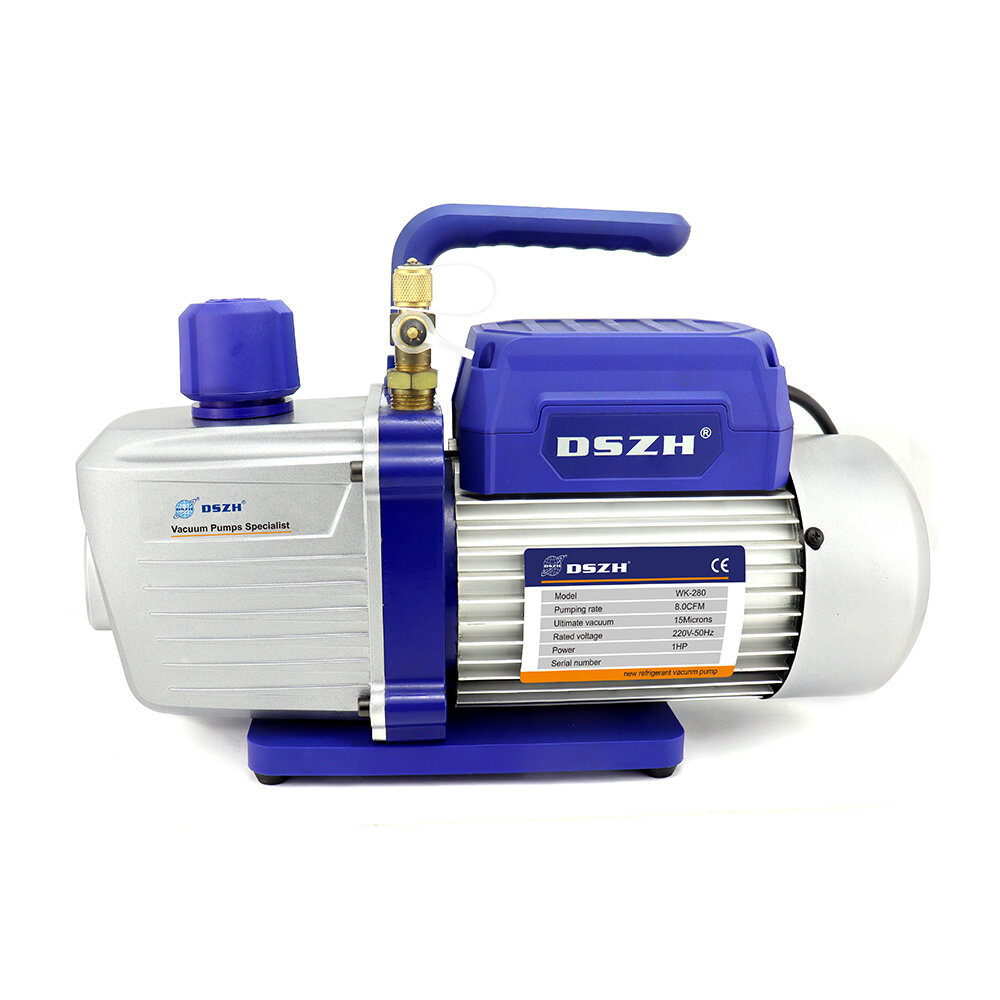

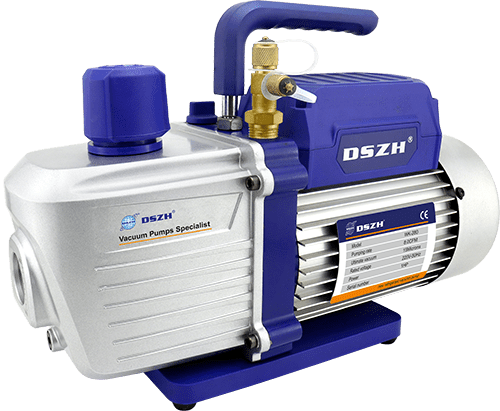

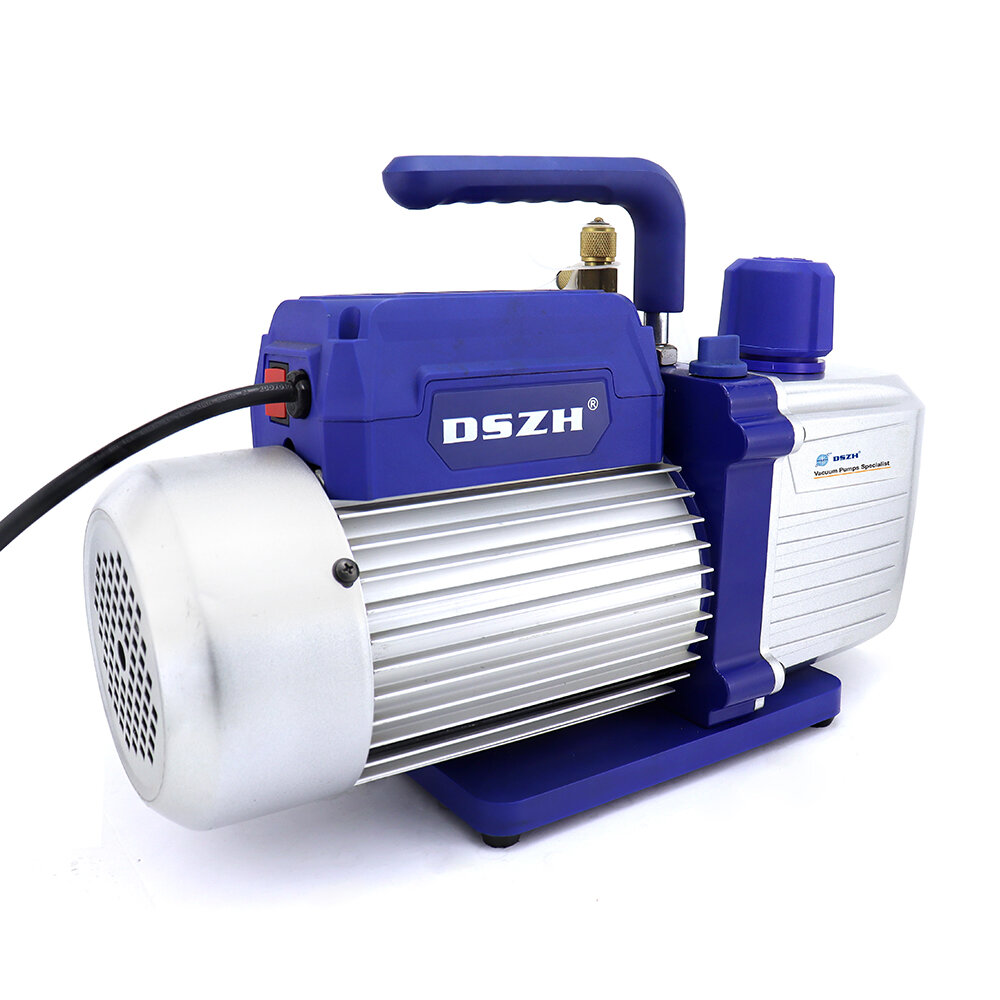

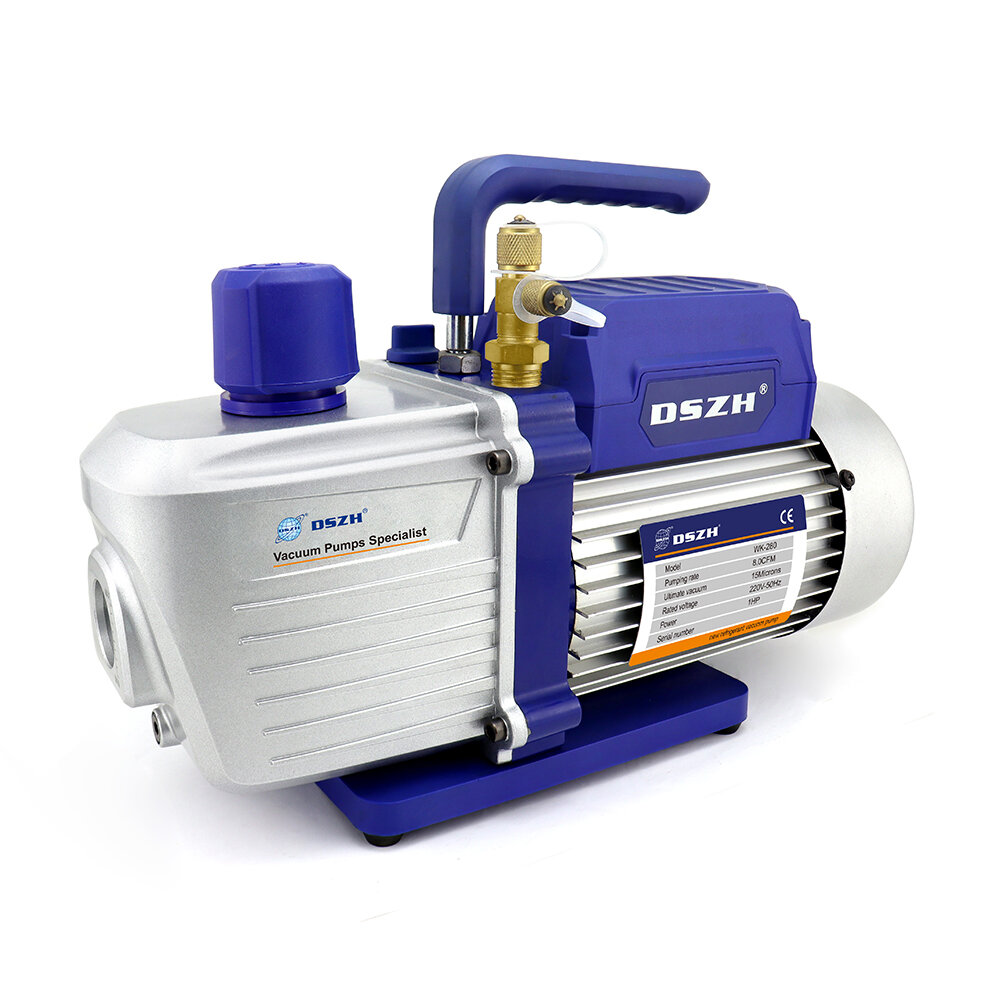

VACUUM PUMP

2CFM-10CFM

★ FORCED OIL CYCLING SYSTEM

★ HIGH RELIABILITY

★ LARGE OIL SCREEN

1

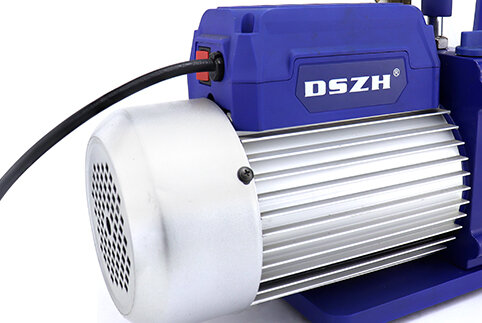

coper core motor
2

Solenoid valve
3

Anti backflow connector

FEATURES

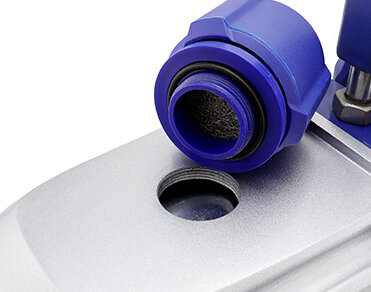

Built-in filter

Filter oil mist, less pollution

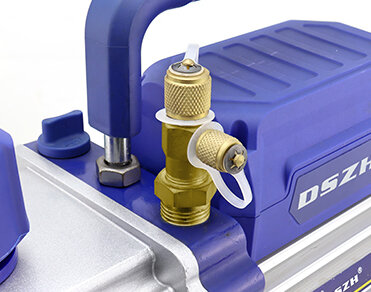

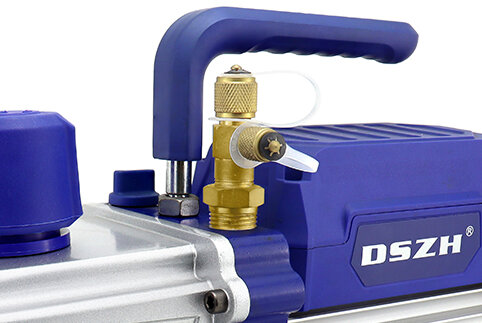

all brass air inlet

Strong and durable

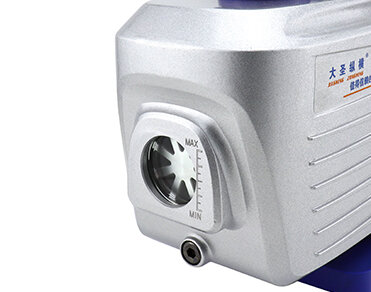

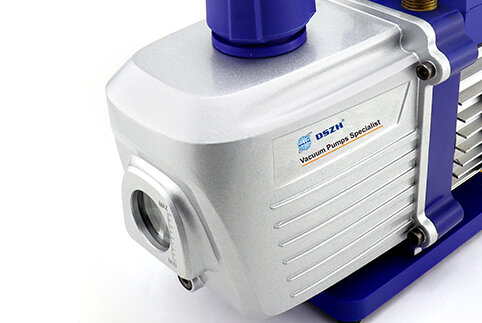

large oil sight glass

Prevent oil shortage, refueling in time

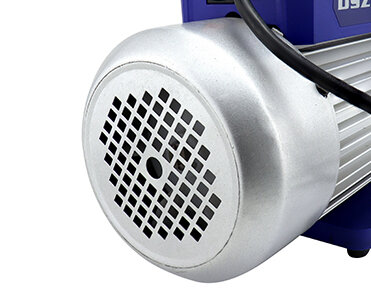

Honeycomb thermovent

Effectively protect machine performance

SPECIFICATIONS

2CFM-10CFM

SINGLE STAGE
Item No.	For Overseas	WK-115	WK-125	WK-135	WK-160	WK-180	WK-1100
Flow Rare	50 Hz	1.8 CFM	2.5 CFM	3.5 CFM	6.0 CFM	8.0 CFM	10.0 CFM
	50 Hz	42 L/MIN	70 L/MIN	100 L/MIN	170 L/MIN	226 L/MIN	283 L/MIN
	60 Hz	2.0 CFM	3.0 CFM	4.0 CFM	7.0 CFM	9.0 CFM	12.0 CFM
	60 Hz	50 L/MIN	84 L/MIN	114 L/MIN	198 L/MIN	254 L/MIN	340 L/MIN
Ultimate Vac.	Partial Pressure	2 Pa	2 Pa	2 Pa	2 Pa	2 Pa	2 Pa
Ultimate Vac.	Total Pressure	150 Microns	150 Microns	150 Microns	150 Microns	150 Microns	150 Microns
Power		1/4 HP	1/4 HP	1/3 HP	1/2 HP	3/4 HP	1 HP
Inlet Port		1/4" Flare	1/4" Flare	1/4" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare
Oil Capacity		230 ml	180 ml	240 ml	430 ml	520 ml	500 ml
Dimension		290×124×227mm	290×124×227mm	303×127×249mm	350×140×263mm	404×158×275mm	427×158×275mm
Weight		5.2 Kgs	5.4 Kgs	8 Kgs	10 Kgs	14.7 Kgs	17 Kgs

DUAL STAGES
Item No.	For Overseas	WK-215	WK-225	WK-235	WK-245	WK-260	WK-280	WK-2100
Flow Rare	50 Hz	1.8 CFM	2.5 CFM	3.5 CFM	4.5 CFM	6.0 CFM	8.0 CFM	10.0 CFM
	50 Hz	42 L/MIN	70 L/MIN	100 L/MIN	128 L/MIN	170 L/MIN	226 L/MIN	283 L/MIN
	60 Hz	2.0 CFM	3.0 CFM	4.0 CFM	5.0 CFM	7.0 CFM	9.0 CFM	12.0 CFM
	60 Hz	50 L/MIN	84 L/MIN	114 L/MIN	142 L/MIN	198 L/MIN	254 L/MIN	340 L/MIN
Ultimate Vac.	Partial Pressure	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa
Ultimate Vac.	Total Pressure	15 Microns	15 Microns	15 Microns	15 Microns	15 Microns	15 Microns	15 Microns
Power		1/4 HP	1/3 HP	1/3 HP	1/2 HP	3/4 HP	1 HP	1 HP
Inlet Port		1/4" Flare	1/4" Flare	1/4" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare
Oil Capacity		140 ml	200 ml	230 ml	350 ml	400 ml	580 ml	490 ml
Dimension		290×124×227mm	303×127×249mm	331×127×249mm	350×140×263mm	404×158×275mm	427×158×275mm	427×158×275mm
Weight		5.5 Kgs	8.1 Kgs	8.2 Kgs	10.5 Kgs	15.5 Kgs	16.3 Kgs	17 Kgs
