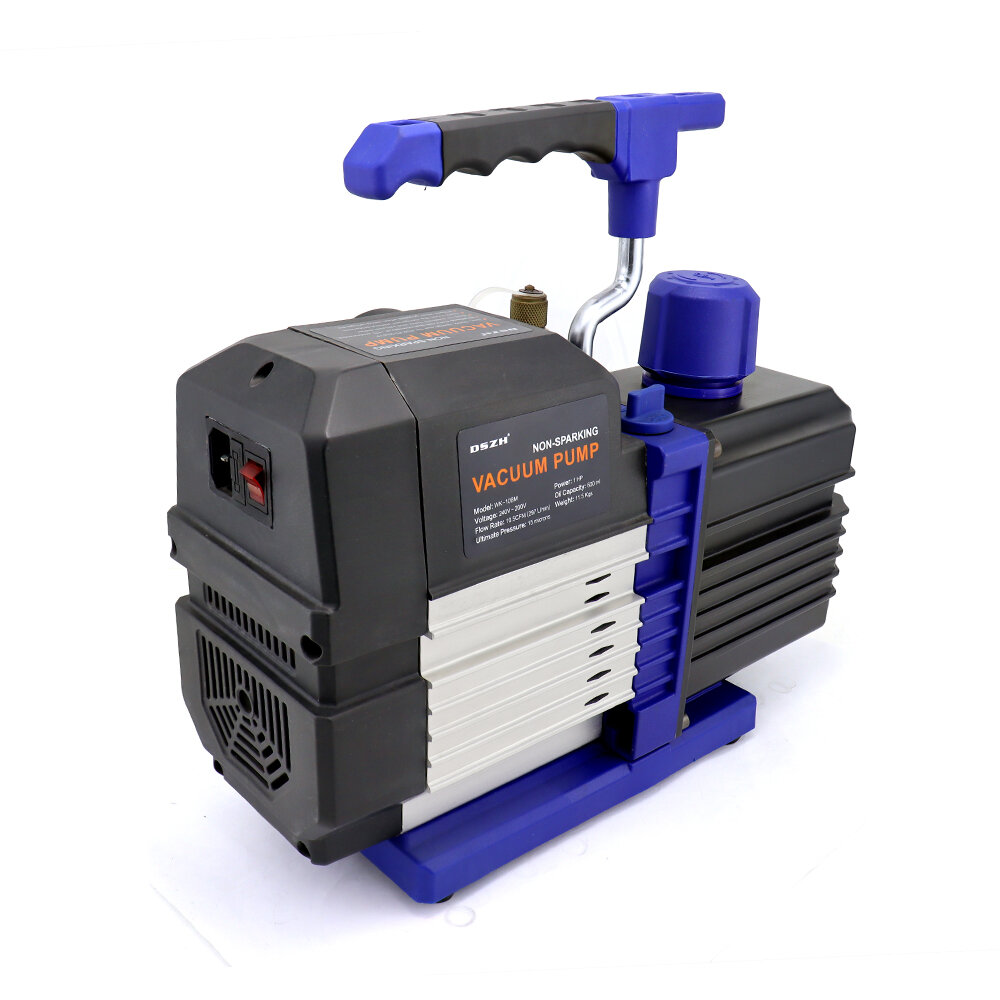

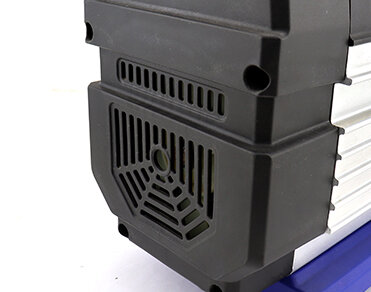

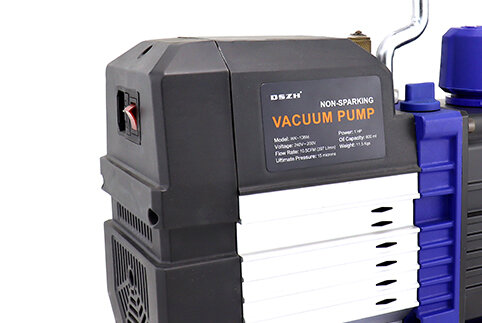

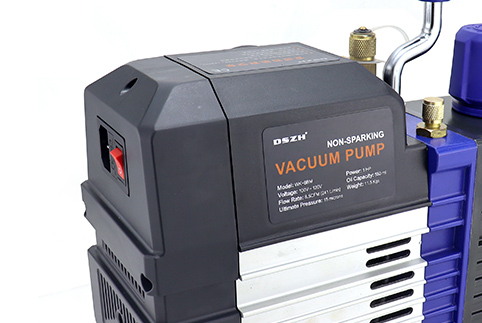

Brushless explosion-proof motor

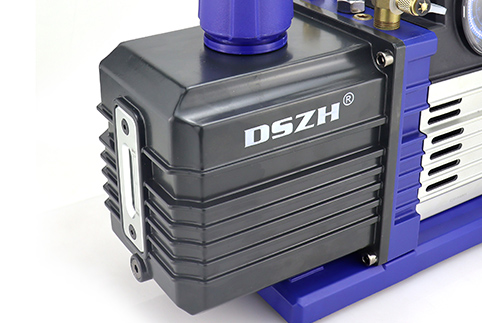

integrated cylinder

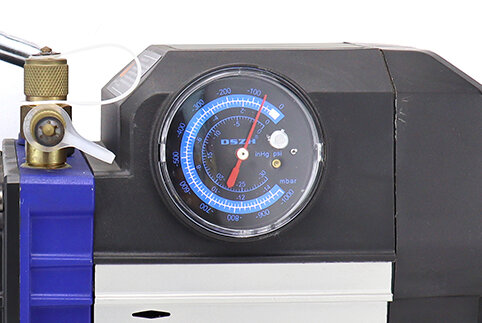

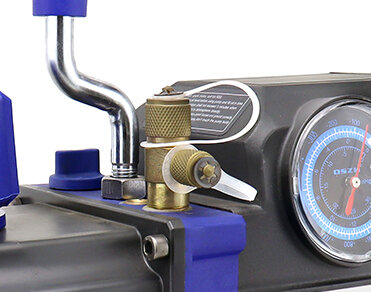

Built-in high precision vacuum gauge

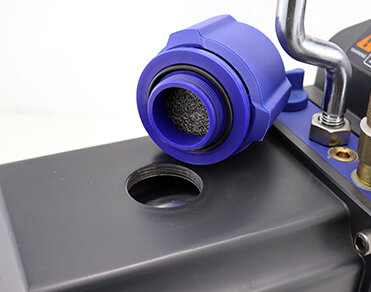

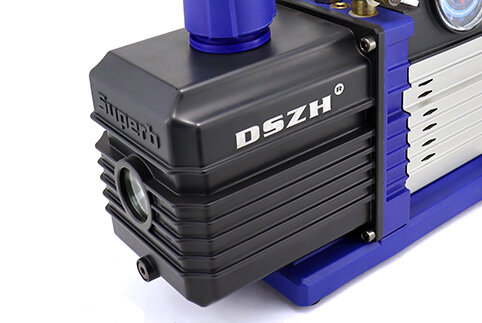

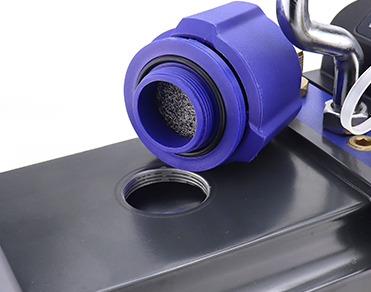

Filter oil mist, less pollution

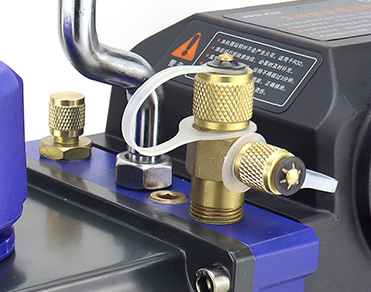

Strong and durable

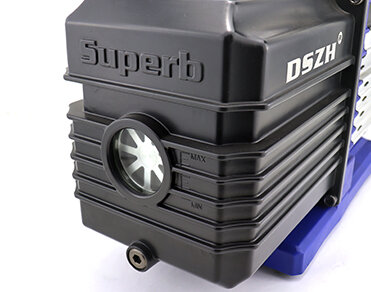

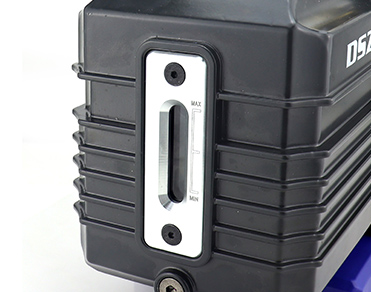

Prevent oil shortage, refueling in time

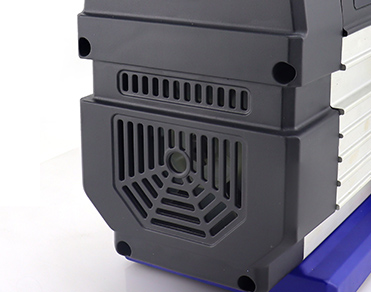

Effectively protect machine performance
| Item No. | WK-8S | WK-10S | WK-12S | WK-6BM | WK-8BM | WK-10BM | WK-12BM |
| Flow Rate | 8.5 CFM | 10.5 CFM | 12.5 CFM | 6.5 CFM | 8.5 CFM | 10.5 CFM | 12.5 CFM |
| 241 L/MIN | 297 L/MIN | 354 L/MIN | 184 L/MIN | 241 L/MIN | 297 L/MIN | 354 L/MIN | |
| Pole No. | Single Stage | Single Stage | Single Stage | Dual Stages | Dual Stages | Dual Stages | Dual Stages |
| Ultimate Vac. | 2 Pa | 2 Pa | 2 Pa | 2x10-1 Pa | 2x10-1 Pa | 2x10-1 Pa | 2x10-1 Pa |
| 60 microns | 60 microns | 60 microns | 15 microns | 15 microns | 15 microns | 15 microns | |
| Power | 1HP | 1HP | 1HP | 1HP | 1HP | 1HP | 1HP |
| Inlet Port | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare | 1/4" & 3/8" flare |
| Oil Capacity | 600 ml | 600 ml | 600 ml | 550 ml | 550 ml | 600 ml | 600 ml |
| Dimension | 315x136x312mm | 315x136x312mm | 315x136x312mm | 352x136x312mm | 352x136x312mm | 352x136x312mm | 352x136x312mm |
| Weight | 11 kgs | 11 kgs | 11 kgs | 11.5 kgs | 11.5 kgs | 11.5 kgs | 11.5 kgs |
