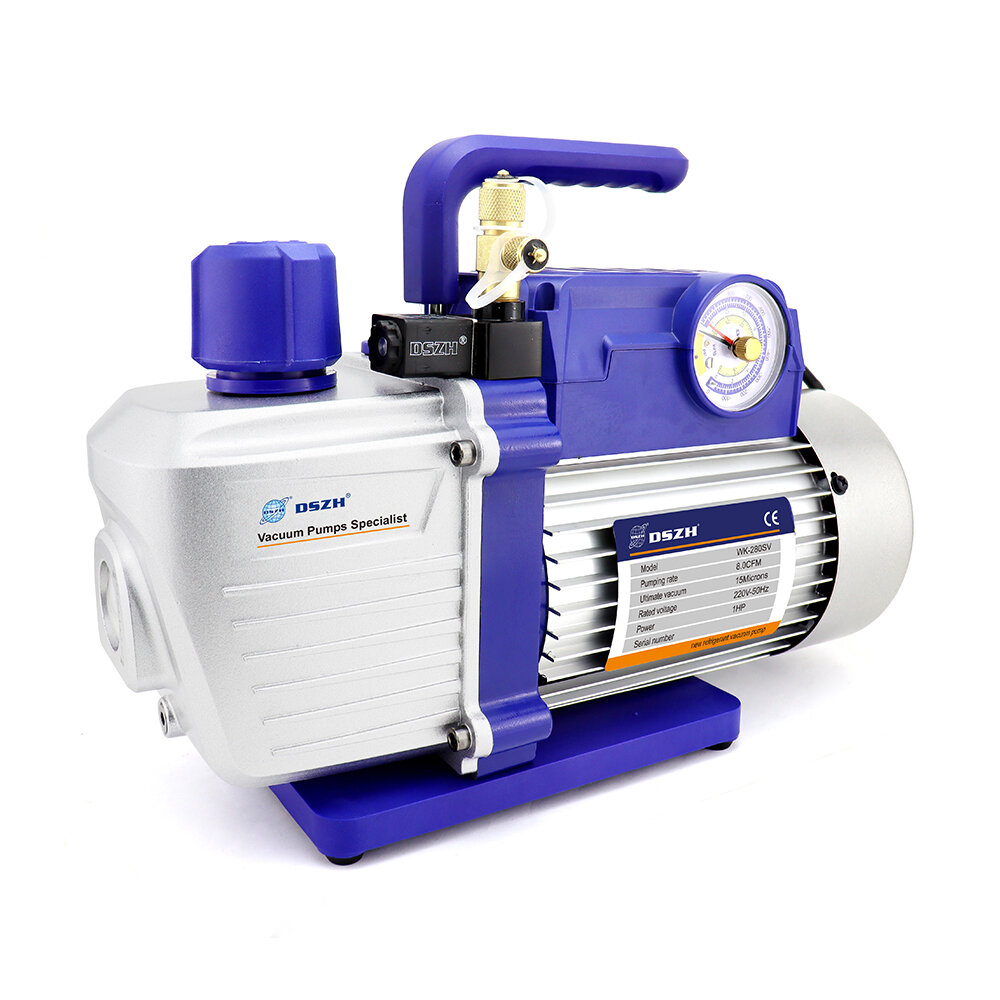

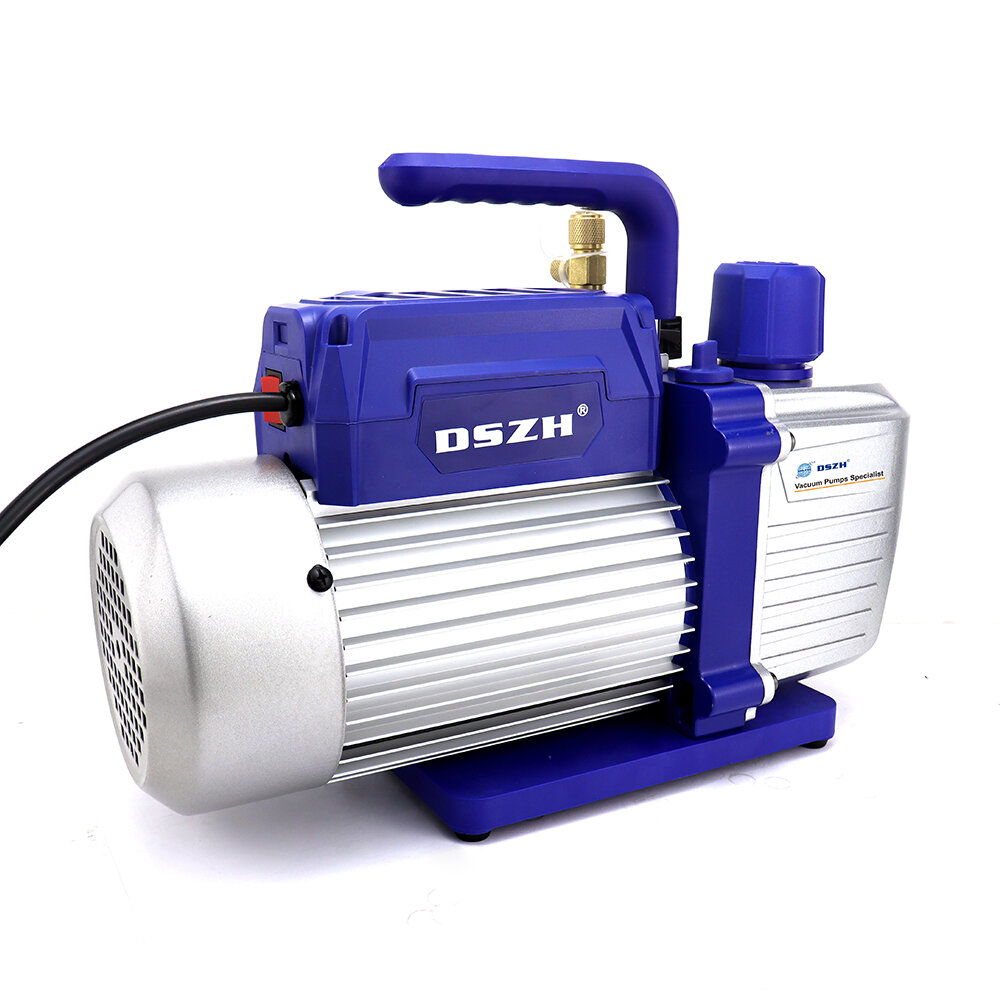

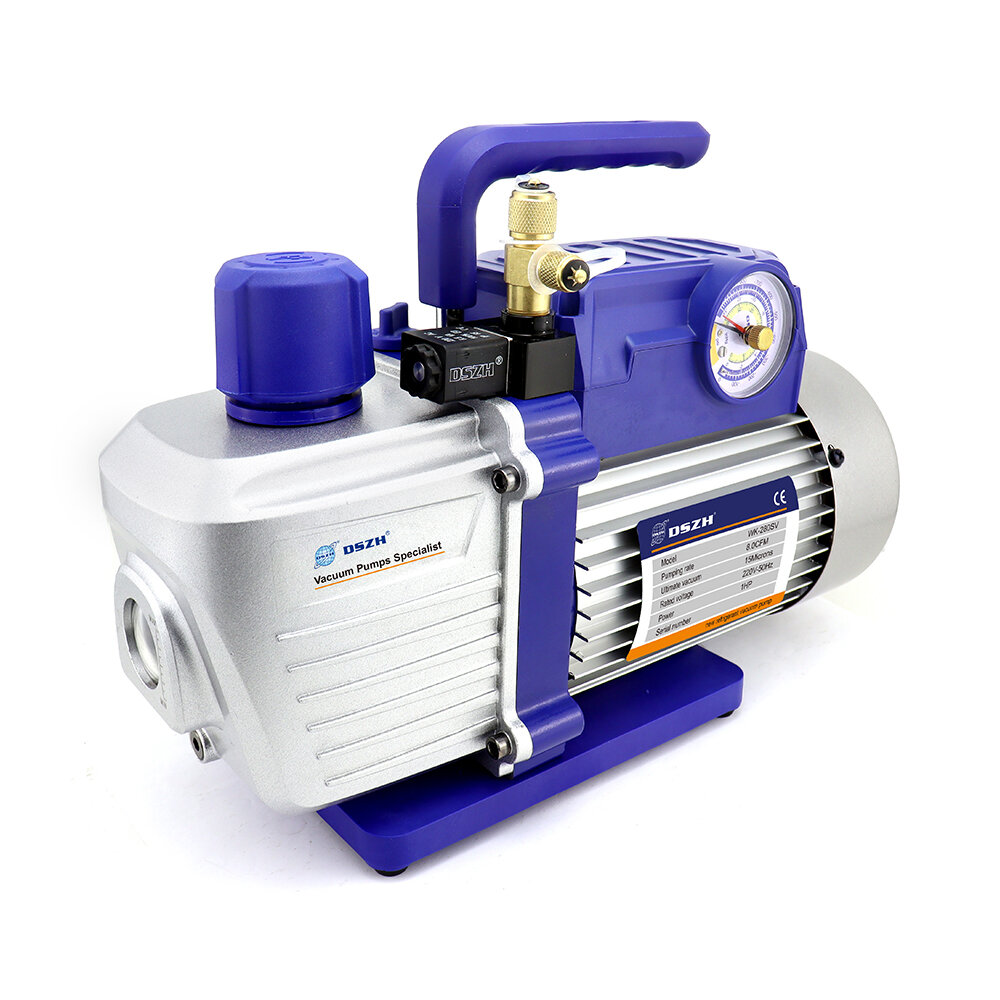

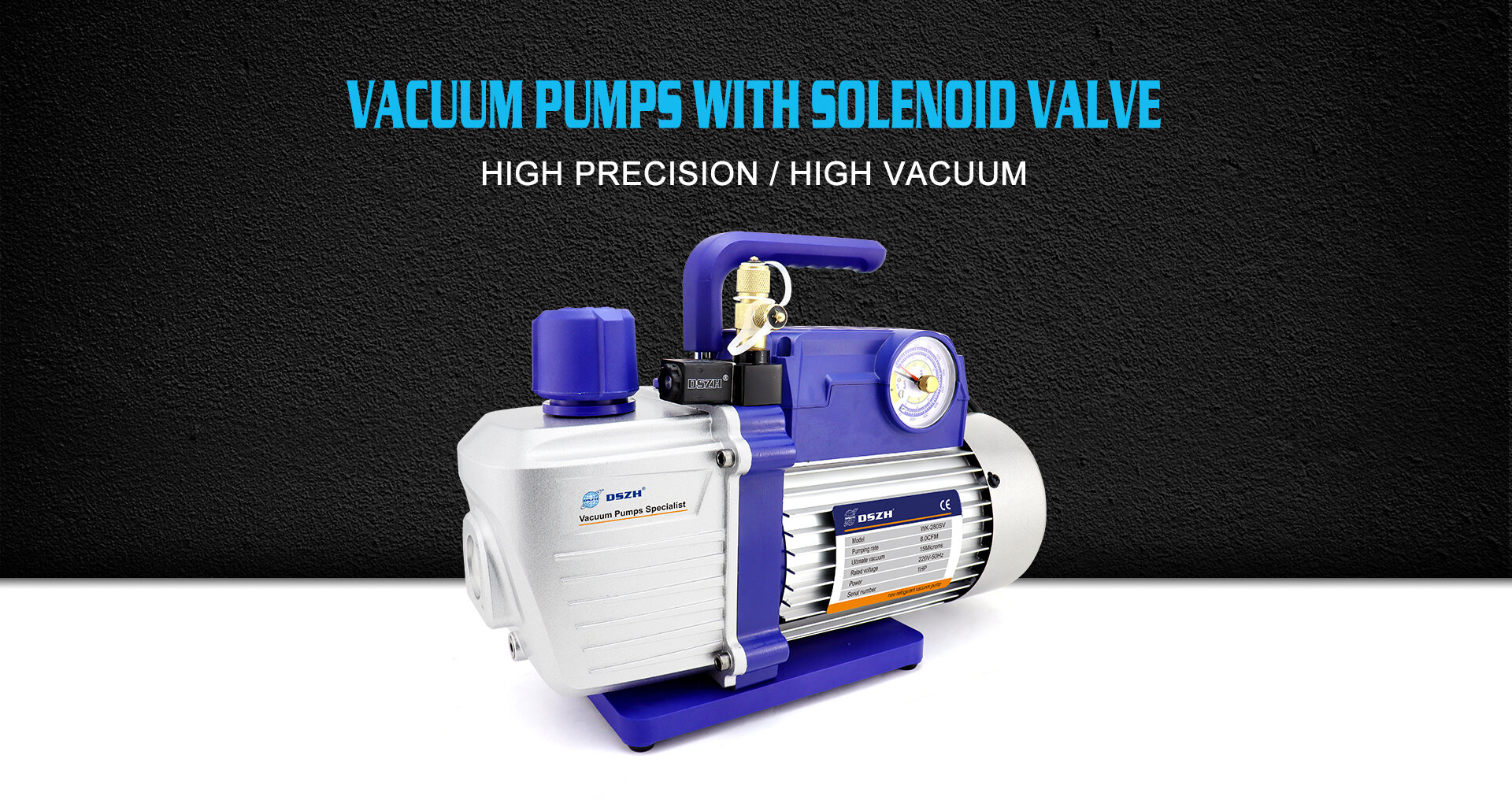

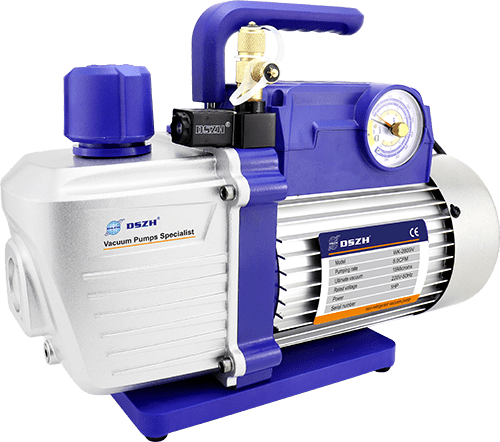

VACUUM PUMPS WITH SOLENOID VALVE

2CFM-10CFM

★ WITH SOLENOID VALVE & VACUUM GAUGE

★ FORCED OIL CYCLING SYSTEM

★ HIGH RELIABILITY

★ LARGE OIL SCREEN

1

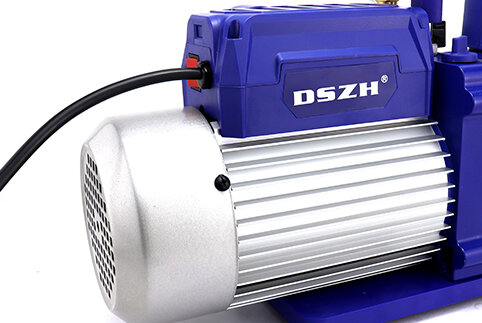

coper core motor
2

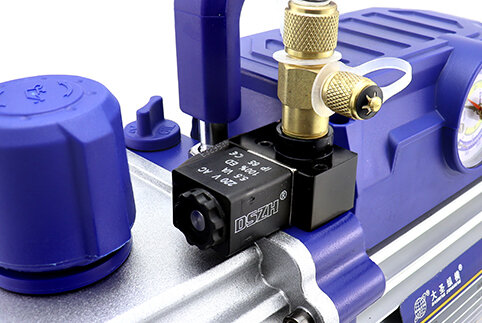

Solenoid valve
3

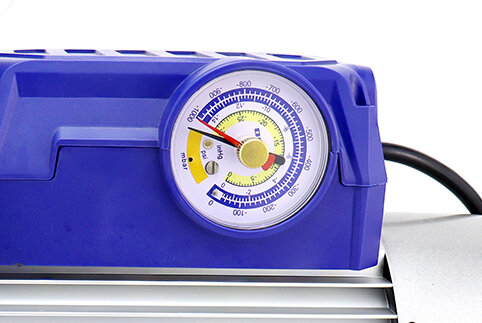

high precision vacuum gauge

FEATURES

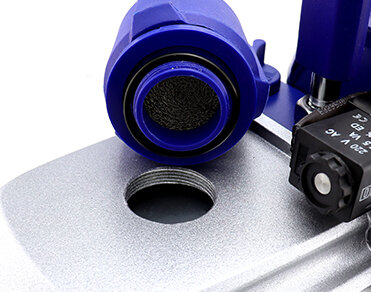

Built-in filter

Filter oil mist, less pollution

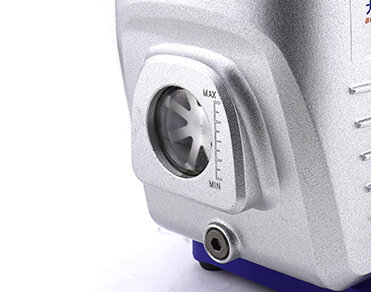

large oil sight glass

Prevent oil shortage, refueling in time

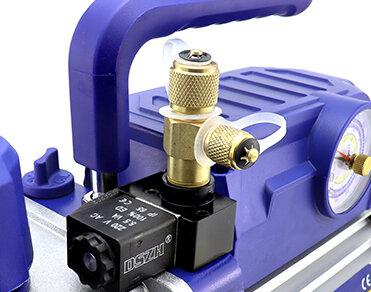

all brass air inlet

Strong and durable

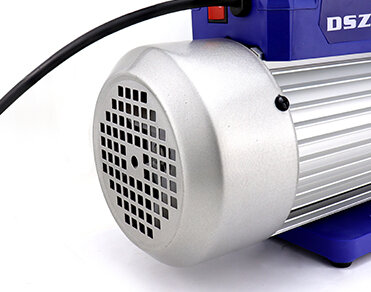

Honeycomb thermovent

Effectively protect machine performance

SPECIFICATIONS

2CFM-10CFM

SINGLE STAGE
Item No.	For Overseas	WK-125SV	WK-135SV	WK-160SV	WK-180SV	WK-1100SV
Flow Rare	50 Hz	2.5 CFM	3.5 CFM	6.0 CFM	8.0 CFM	10.0 CFM
	50 Hz	70 L/MIN	100 L/MIN	170 L/MIN	226 L/MIN	283 L/MIN
	60 Hz	3.0 CFM	4.0 CFM	7.0 CFM	9.0 CFM	12.0 CFM
	60 Hz	84 L/MIN	114 L/MIN	198 L/MIN	254 L/MIN	340 L/MIN
Ultimate Vac.	Partial Pressure	2 Pa	2 Pa	2 Pa	2 Pa	2 Pa
Ultimate Vac.	Total Pressure	150 Microns	150 Microns	150 Microns	150 Microns	150 Microns
Power		1/4 HP	1/3 HP	1/2 HP	3/4 HP	1 HP
Inlet Port		1/4" Flare	1/4" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare
Oil Capacity		180 ml	240 ml	430 ml	520 ml	500 ml
Dimension		290×124×227mm	303×127×249mm	350×140×263mm	404×158×275mm	427×158×275mm
Weight		5.7 Kgs	8.3 Kgs	10.3 Kgs	15 Kgs	17.3 Kgs

DUAL STAGES
Item No.	For Overseas	WK-215SV	WK-225SV	WK-235SV	WK-245SV	WK-260SV	WK-280SV	WK-2100SV
Flow Rare	50 Hz	1.8 CFM	2.5 CFM	3.5 CFM	4.5 CFM	6.0 CFM	8.0 CFM	10.0 CFM
	50 Hz	42 L/MIN	70 L/MIN	100 L/MIN	128 L/MIN	170 L/MIN	226 L/MIN	283 L/MIN
	60 Hz	2.0 CFM	3.0 CFM	4.0 CFM	5.0 CFM	7.0 CFM	9.0 CFM	12.0 CFM
	60 Hz	50 L/MIN	84 L/MIN	114 L/MIN	142 L/MIN	198 L/MIN	254 L/MIN	340 L/MIN
Ultimate Vac.	Partial Pressure	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa	2×10^-1Pa
Ultimate Vac.	Total Pressure	15 Microns	15 Microns	15 Microns	15 Microns	15 Microns	15 Microns	15 Microns
Power		1/4 HP	1/3 HP	1/3 HP	1/2 HP	3/4 HP	1 HP	1 HP
Inlet Port		1/4" Flare	1/4" Flare	1/4" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare	1/4" & 3/8" Flare
Oil Capacity		140 ml	200 ml	230 ml	350 ml	400 ml	580 ml	490 ml
Dimension		290×124×227mm	303×127×249mm	331×127×249mm	350×140×263mm	404×158×275mm	427×158×275mm	427×158×275mm
Weight		5.8 Kgs	8.4 Kgs	8.5 Kgs	10.8 Kgs	15.8 Kgs	16.6 Kgs	17.3 Kgs
