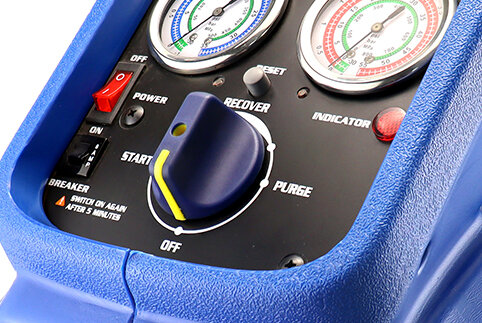

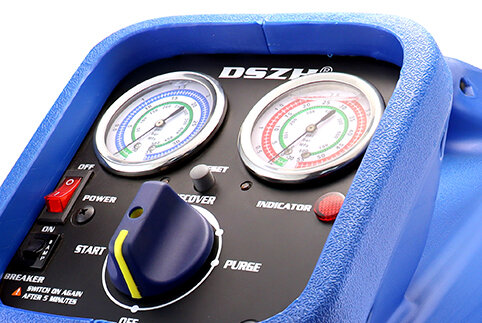

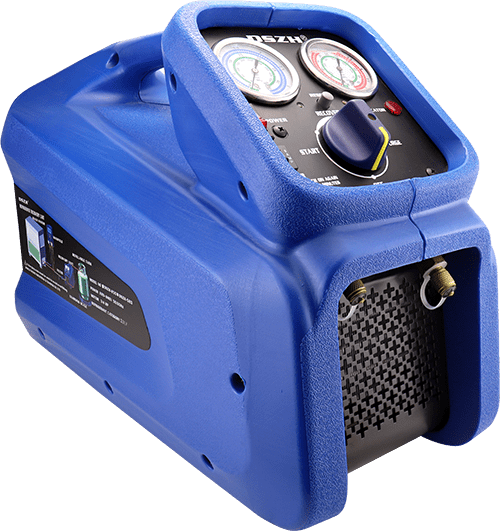

Embedded pressure gauge
Double cylinder compressor
SELF CLEARING FUNCTION

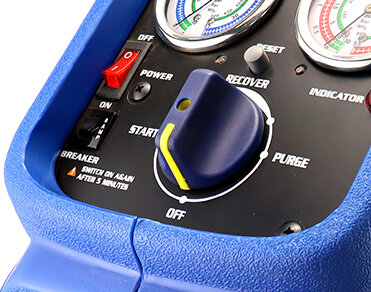

Operation easily convenient

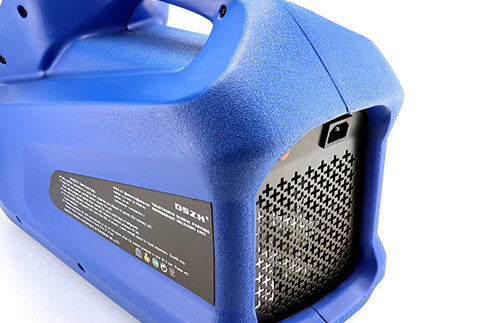

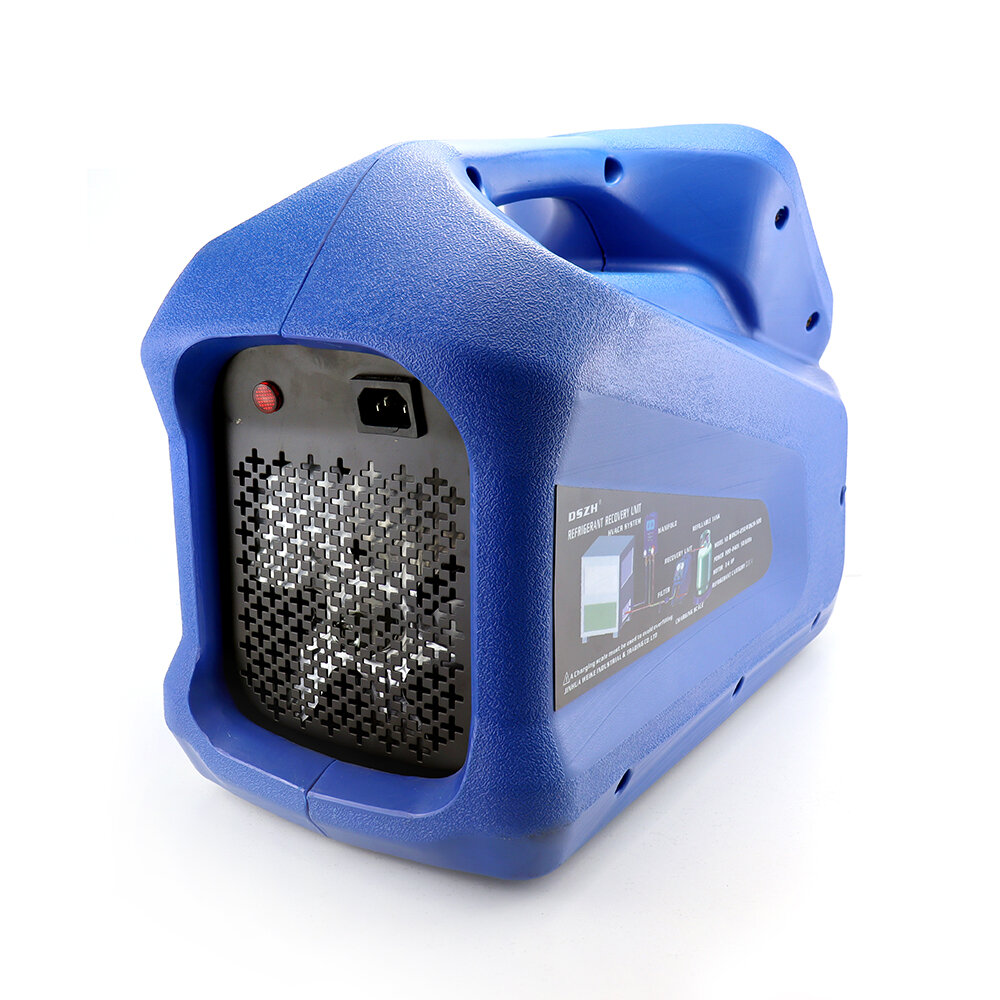

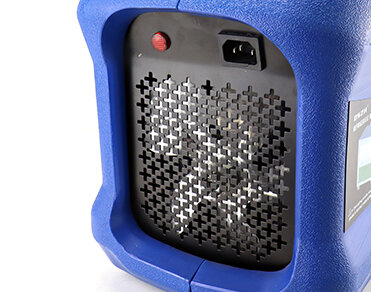

Heat dissipation fast
| Item No. | DSZH-520-11 | DSZH-520-22 | |||||
| Refrigerant Gas | Cat Ⅲ：R12、R134A、R401C、R500 | ||||||
Cat Ⅳ：R22、R401A/B、R402B、R407C/D、R408A、R409A、R411A/B、R412A、R502、R509; | |||||||
| Cat Ⅴ：R402A、R404A、R407A/B、R410A、R507 | |||||||
| Voltage | 110V 50/60Hz | 220V 50/60Hz | |||||
| Motor | 3/4HP AC | ||||||
| Revolving Speed | 1450RPM/Min | ||||||
| Maximum Current | 8 A | 4 A | |||||
| Compressor | Oil-less,air-cooled,1 Piston Style | ||||||
| Pressure Overload Protect | 38.0bar/3800Kpa/551Psi | ||||||
| Operation Temperature | 0~50℃ | ||||||
| Size | 500x225x360mm | ||||||
| Net Weight | 18kg | ||||||
Recovery Rate(kg/min) | Category | Category Ⅲ | Category Ⅳ | Category Ⅴ | |||
| Vapor | 0.228kg/min | 0.271kg/min | 0.319kg/min | ||||
| Liquid | 3.54kg/min | 4.02kg/min | 5.42kg/min | ||||
| Push-pull | 11.64kg/min | 14.3kg/min | 14.38kg/min | ||||
